CPRO Mooring H&L
CPRO Mooring H&L is a chafe protection sleeve made with different surface friction on the inside and the outside, using different materials and coatings. The low-friction inner layer allows the rope to adjust to the load, while the outer layer's higher coefficient of friction minimises movement against the contact surface.
The hook & loop closure means the sleeve is applied over the rope in the field — no re-splicing — and removed just as easily for replacement or rope inspection. The sleeve is lightweight and does not absorb water.
Key benefits
- Low-friction inner layer lets the rope adjust to the load; high-friction outer face minimises movement on the contact surface
- Excellent weight-to-durability ratio
- High abrasion and cut resistance
- Easy to install and remove for replacement or rope inspection
- Does not absorb water
Technical information
| Property | Value |
|---|---|
| Construction | Herringbone narrow weave |
| Fibre | UHMWPE (white) and polyester (black) |
| Fabric weight | 2,011 g/m² |
| Thickness | 3 mm |
| Specific gravity | 1.18 |
| Coating | Optional |
| Melting point | +144 °C to +152 °C |
| Abrasion resistance | Excellent |
| Cut resistance | Excellent |
| Diameter | Custom fit to the rope diameter |
| Length | Manufactured in any length |
Construction and materials

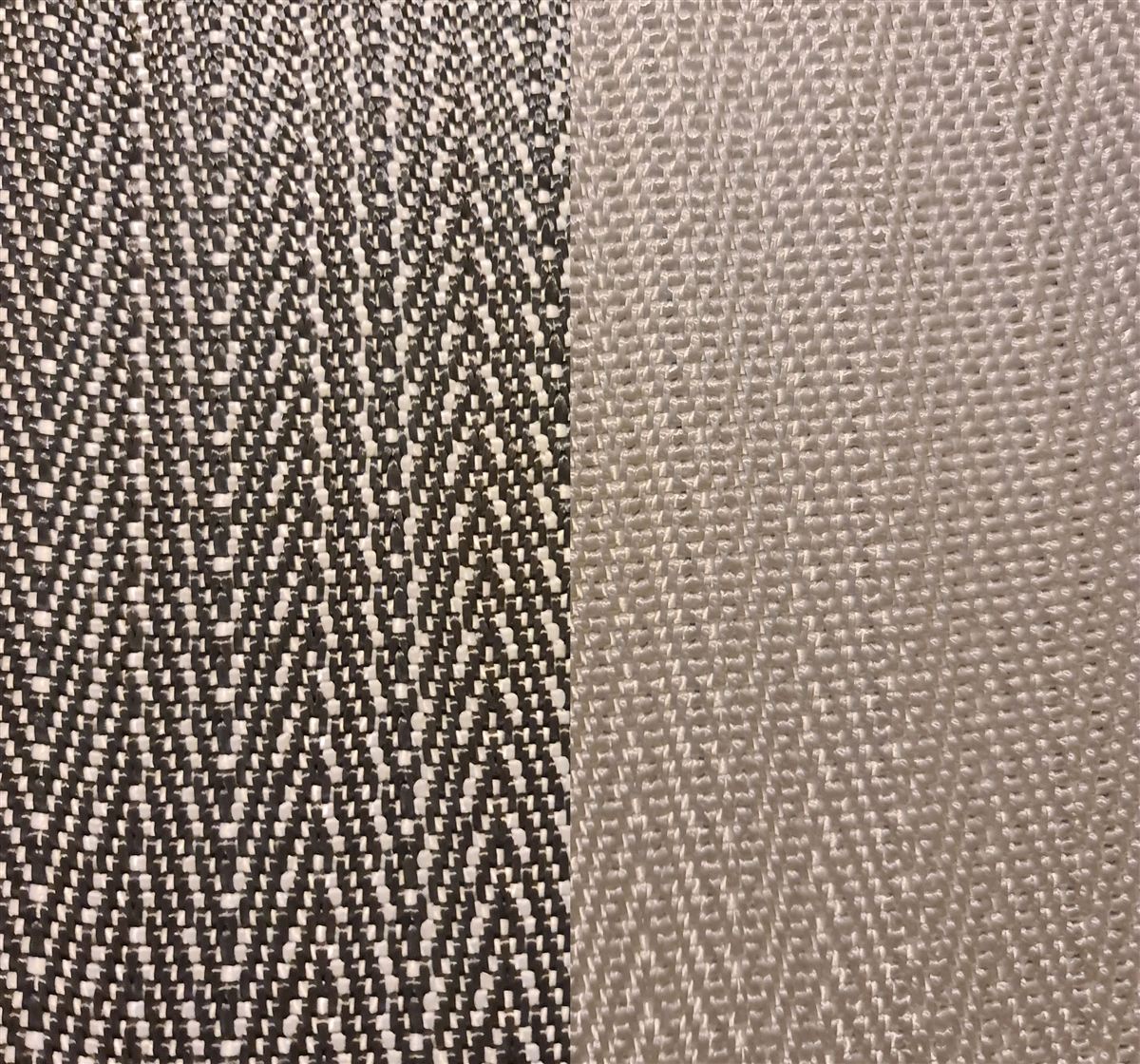

The sleeve is woven as a herringbone narrow weave from two fibres: UHMWPE (the white yarn) and polyester (the black yarn). Coatings can be added to further increase performance and improve the friction coefficient.
Learn more about the CPRO™ fabric platformInstallation and fastening
Installed and removed in the field over the rope using the hook & loop closure — proven to work in the maritime environment. All ProChafe products can be supplied with fastening bands for positioning, connection and pulling.
Fastening options
ProChafe supplies standardised fastening-band configurations for positioning the sleeve and for connection and pulling — particularly useful for CPRO Mooring H&L and CPRO Mooring Tube.
- Single fastening band for pulling
- Fastening band with multiple eyes for connection and pulling
- Two integrated fastening bands for connection and pulling
- Three integrated fastening bands for connection and pulling
- Integrated rope for permanently securing the jacket — tied off with seizing, whipping or knots
Typical applications
Designed for mooring lines and other synthetic ropes at the points where they bear on contact surfaces — in offshore operations, fisheries and aquaculture.
